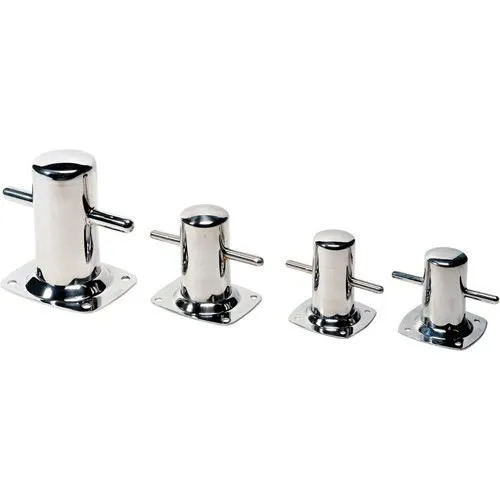

Made of high-gloss polished stainless steel (AISI 316).
Bollards type ACHILZ are for direct welding to the deck. Dimensions are similar to ACHIL (Also in mm).
Other Details:

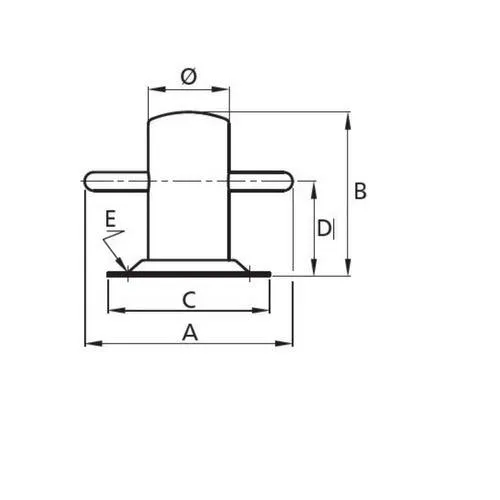

Type	SWL*	A	B	Ø	C**	D	E
ACHIL080	620kgf	120	90	40	80x65	52	4xØ65
ACHIL090	620kgf	130	95	50	92x92	52	4xØ65
ACHIL110	1150kgf	160	120	60	122x97	70	4xØ85
ACHIL130	1150kgf	180	142	70	140x118	82	4xØ85
ACHIL150	1800kgf	200	172	80	153x122	100	4xØ105
ACHIL160	2620kgf	255	195	90	165x135	120	4xØ105
ACHIL080Z	620 kgf	120	90	40	-	52	-
ACHIL090Z	620 kgf	130	95	50	-	52	-
ACHIL110Z	1150 kgf	160	120	60	-	70	-
ACHIL130Z	1150 kgf	180	142	70	-	82	-
ACHIL150Z	1800 kgf	200	172	80	-	100	-
ACHIL150Z	2620 kgf	255	195	90	-	120	-
