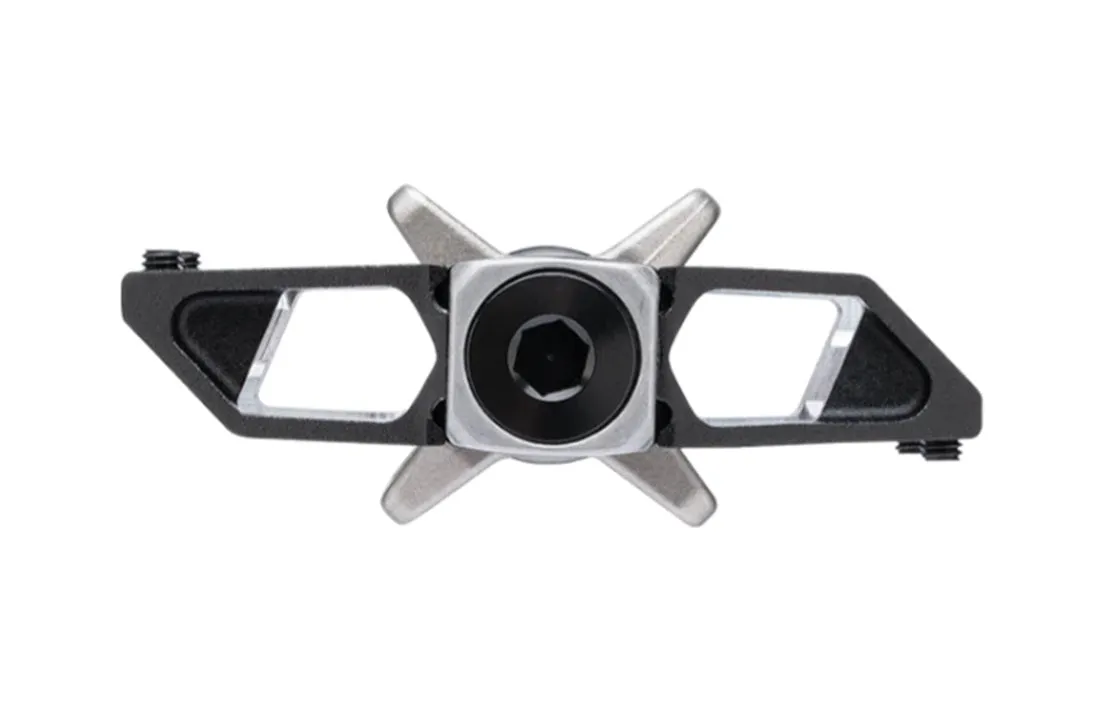

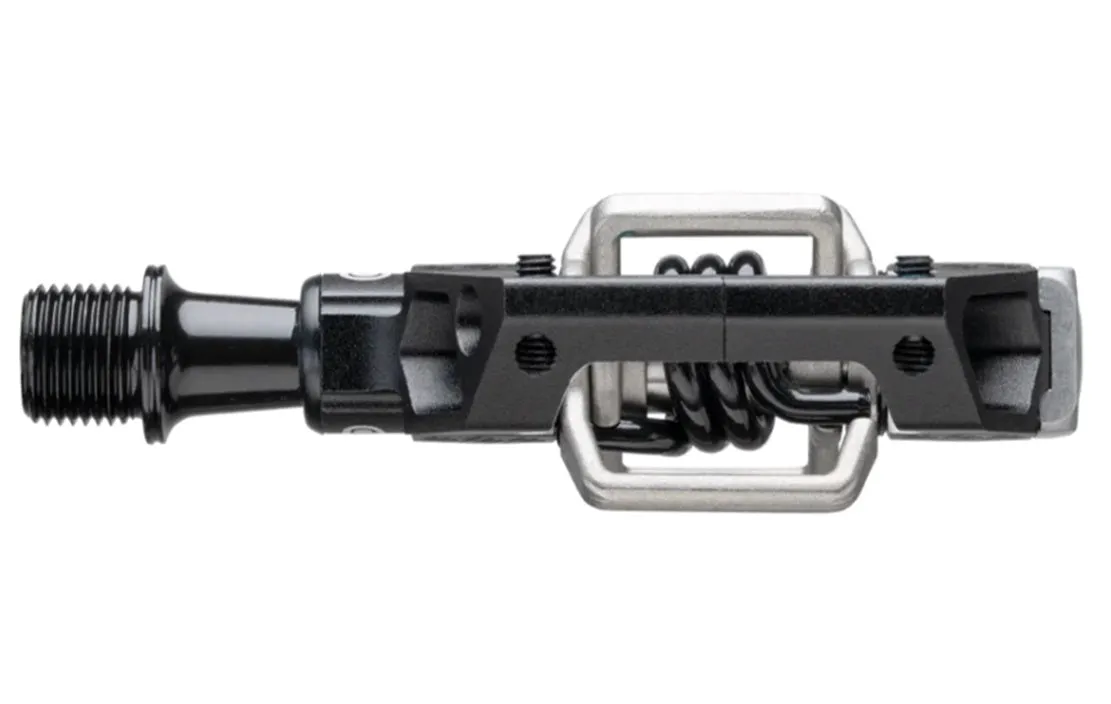

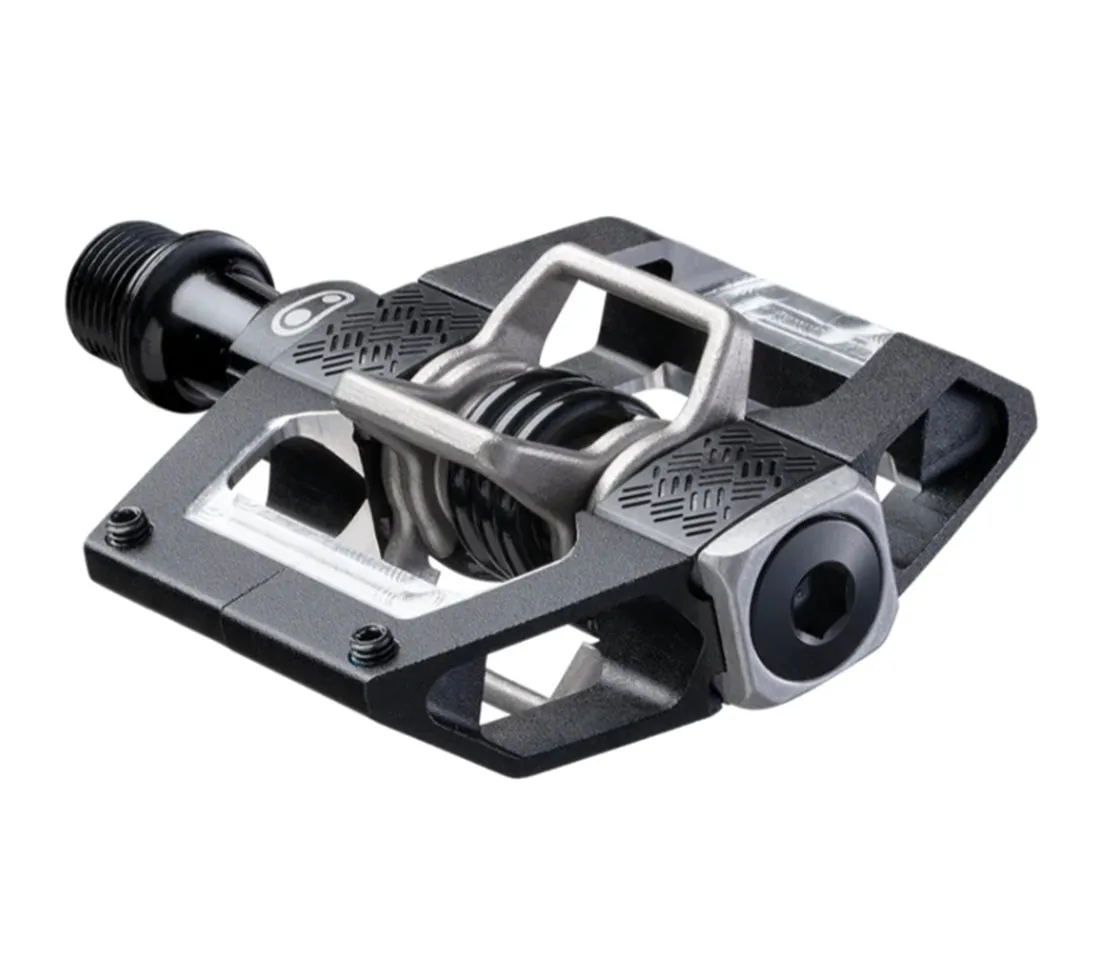

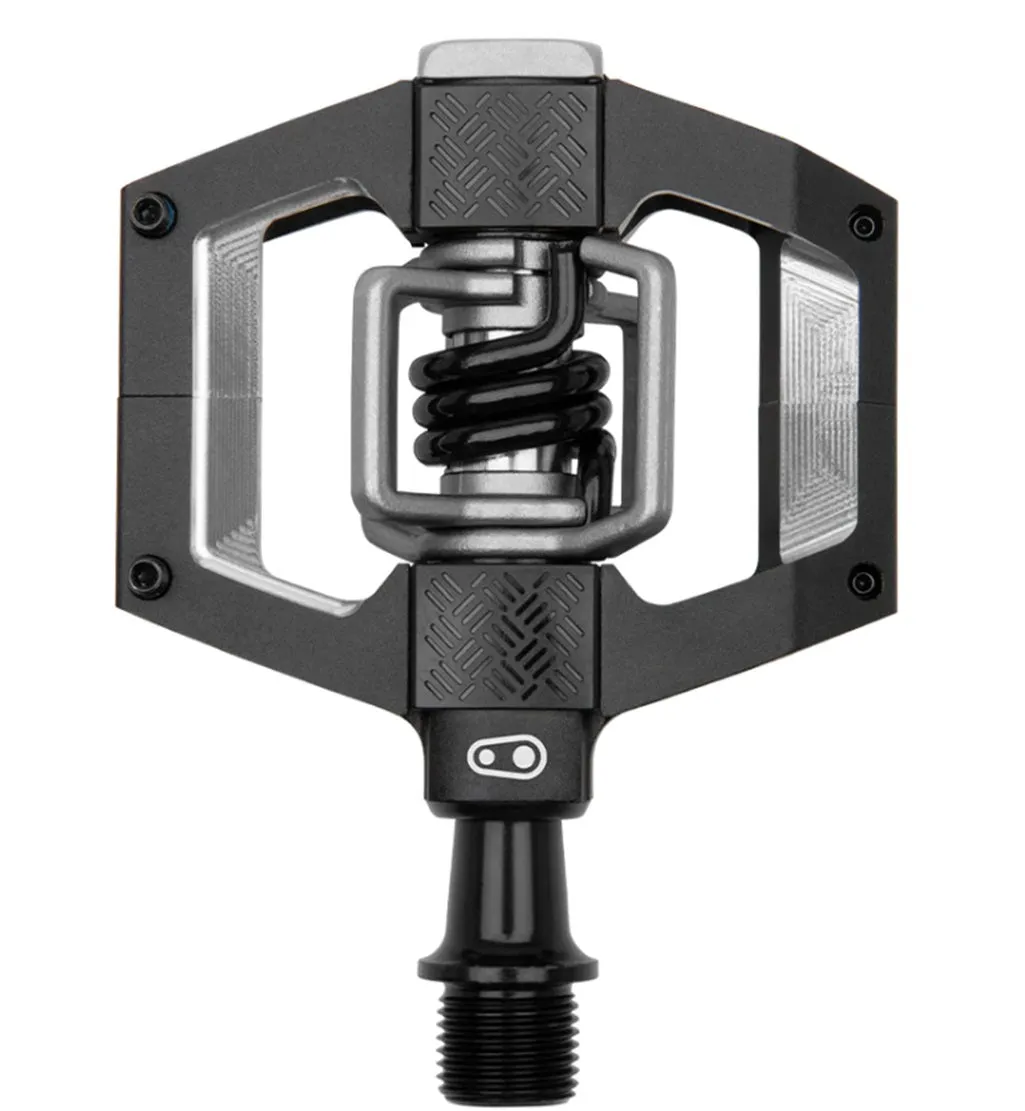

Full suspension or entirely rigid, upon a mountain top or deep in the woods, it’s up to you to define your trail. The CrankBrothers Mallet Trail Clip-In Bicycle Pedal fills the missing piece in the CrankBrothers clip-in range, sitting perfectly between the Candy and Mallet E pedals. Equipped with a long spindle for stability and speed, two adjustable pins per side for added traction, and our eggbeater system with 4-sided entry and superior mud shedding, the CrankBrothers Mallet Trail Clip-In Bicycle Pedal is ready to join you on your next adventure.
Highlights
- Optimized platform size and surface for trail/gravel riding
- Long spindle, 57mm q-factor for more shoe clearance and stability at speed
- Integrated traction pad technology to customize and optimize the shoe/pedal interface
- 2 adjustable pins per side for grip
- Hex alloy endcap for durability
- 4-sided entry / superior mud shedding
- Customizable float & release angle
- Owner's manual and technical documents
Specifications
- Body Material - 6061-T6 Aluminum
- Body Dimensions (L x W) - 78mm x 74mm
- Wing Material - 17-4PH Stainless
- Spindle Length - 57mm
- Traction Pins - 2 adjustable per side
- Pin Length - 8mm
- Inner Bearing Type - Igus LL-glide bearing
- Outer Bearing Type - Enduro MAX cartridge bearing
- Endcap - Hex alloy
- Spindle Material - Forged SCM 435 Chromoly Steel
- Spring Material - 300 series stainless steel
- Max Rider Weight - No restriction
- Weight - 344g per pair
- Included Cleat Type - 15° / 20° Standard Release, 6° Float
- Cleat Notice - Third-party cleats are not approved for use with Crankbrothers pedal systems. Using non-Crankbrothers cleats can reduce pedal lifespan and voids the pedal warranty.
- Warranty - 5 years
