Description

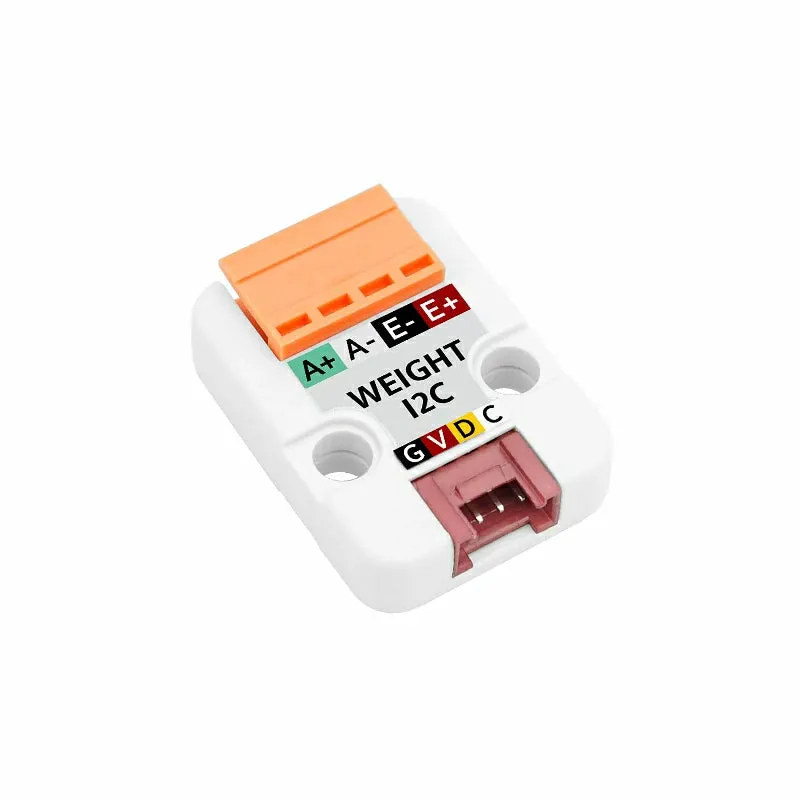

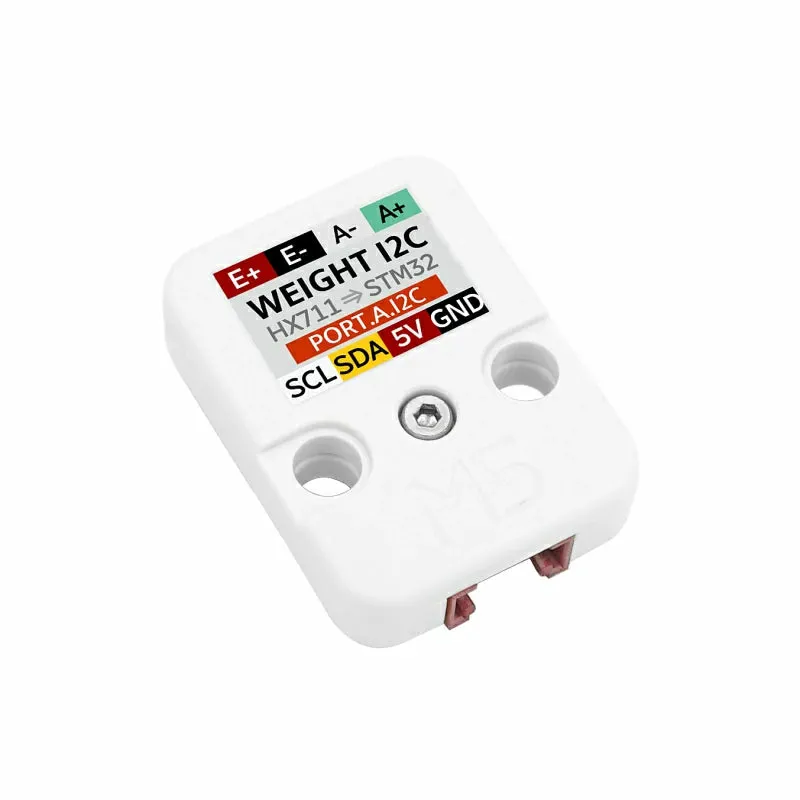

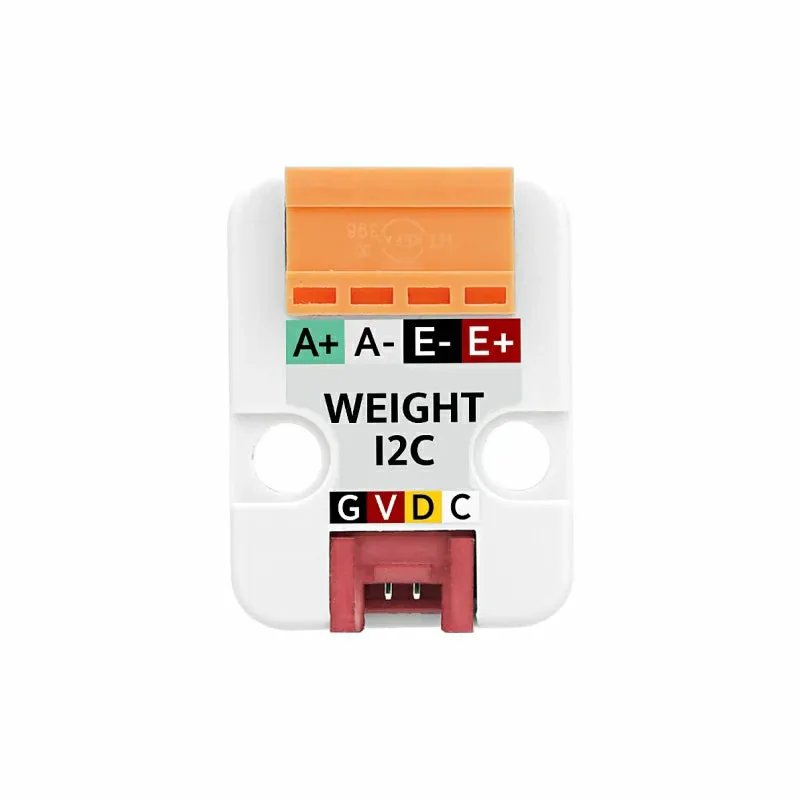

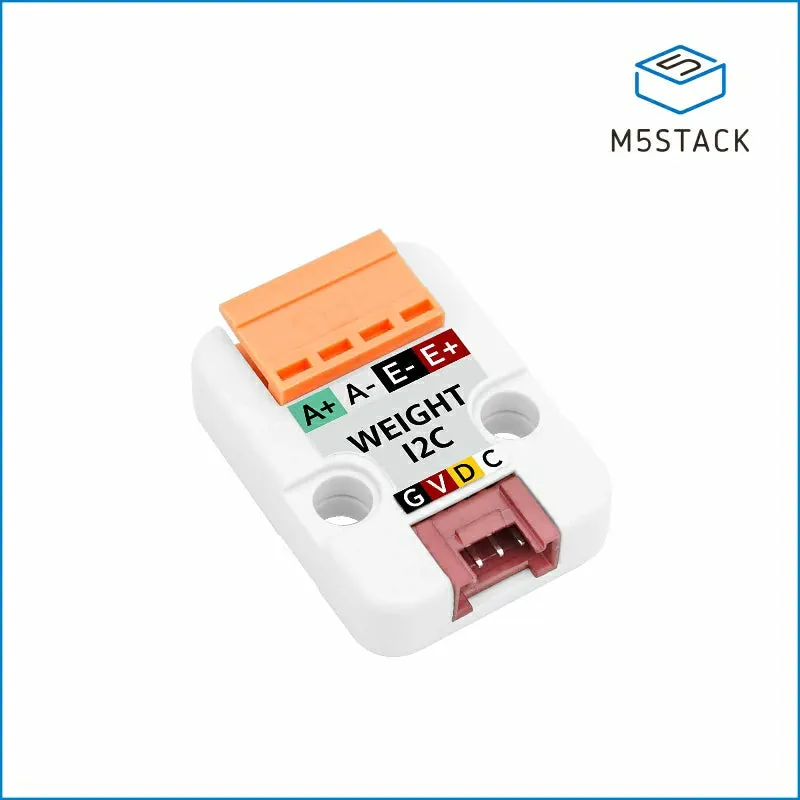

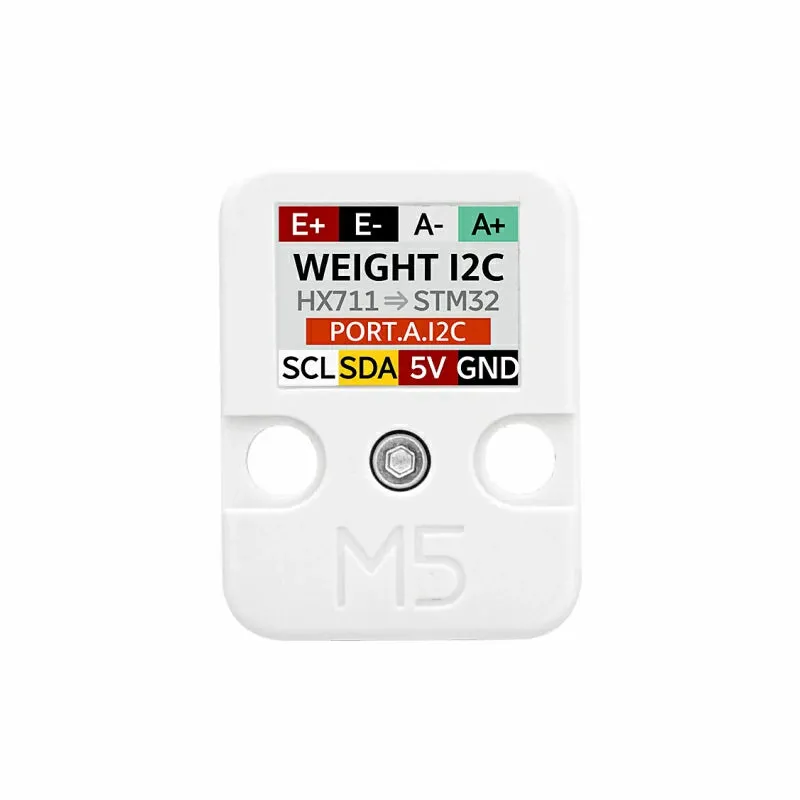

The Weight I2C Unit is a weight acquisition transducer unit that employs the "STM32 HX711 chip" solution, achieving precision weight measurement with 24-bit accuracy through I2C communication. It supports the parallel connection of multiple devices on the same I2C bus, providing users with greater flexibility in terms of a wider range and more data collection points. It is suitable for various applications such as industrial production, healthcare, logistics, laboratory research, and food processing.
Features
- STM32F030F4P6 HX711
- 24Bit measurement accuracy
- I2C serial communication
- Program platform: Arduino, UIFlow, etc

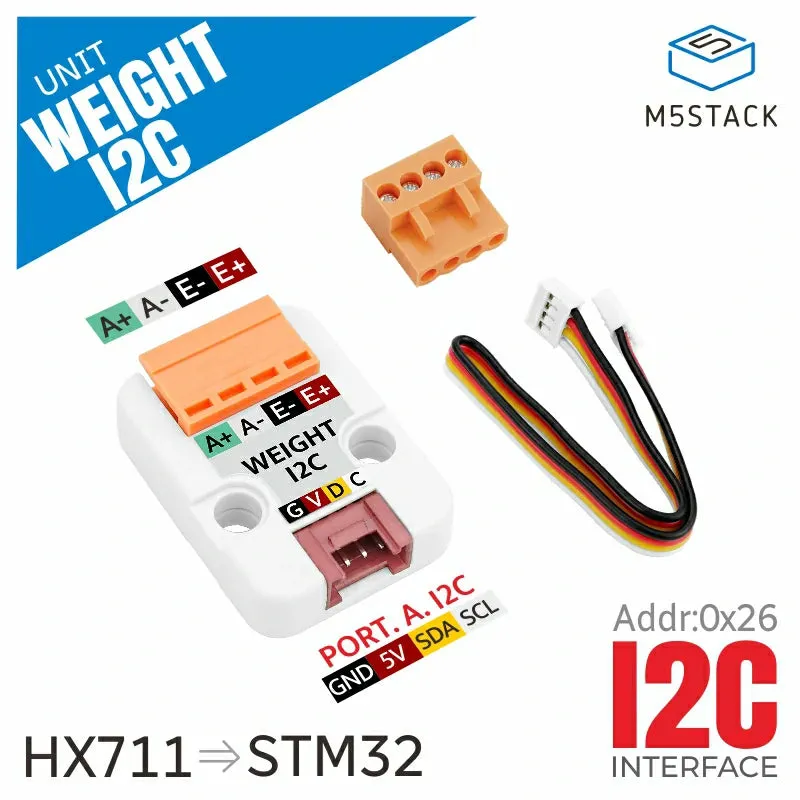

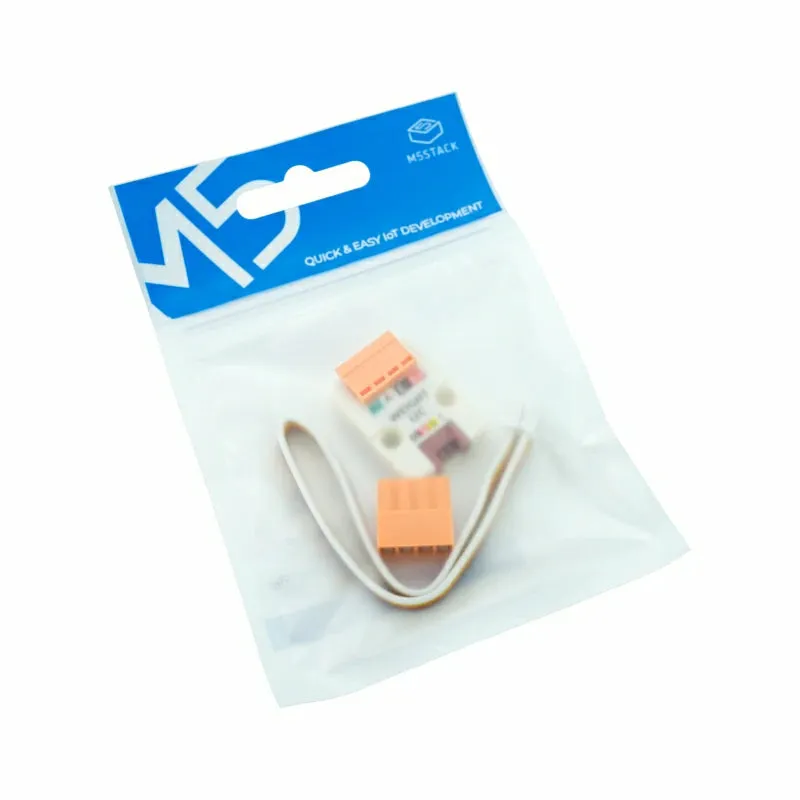

Includes
- 1x Weight I2C Unit

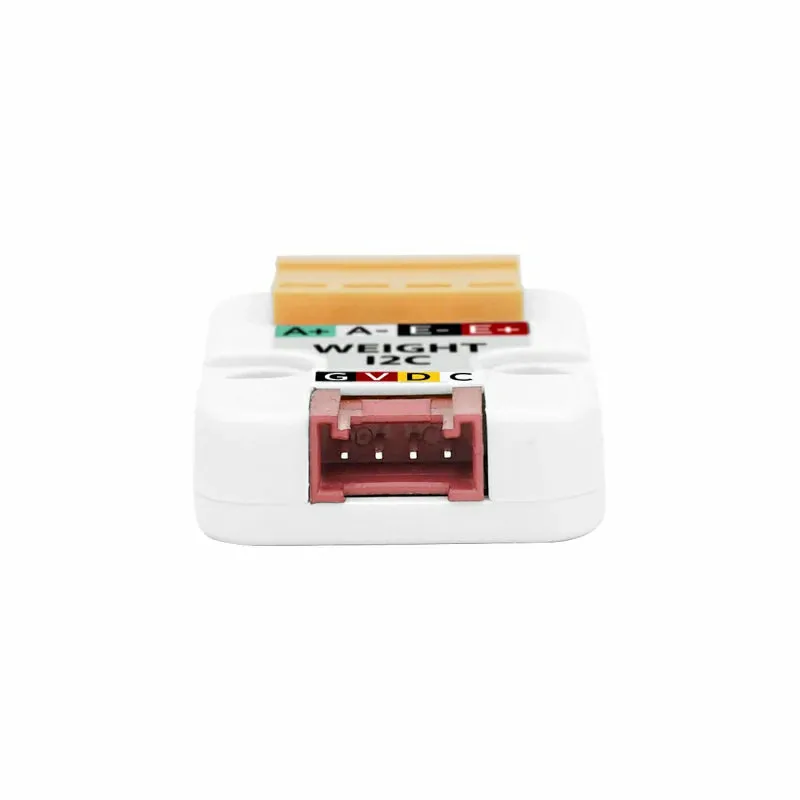

- 1x HY2.0-4P Cable(20cm)

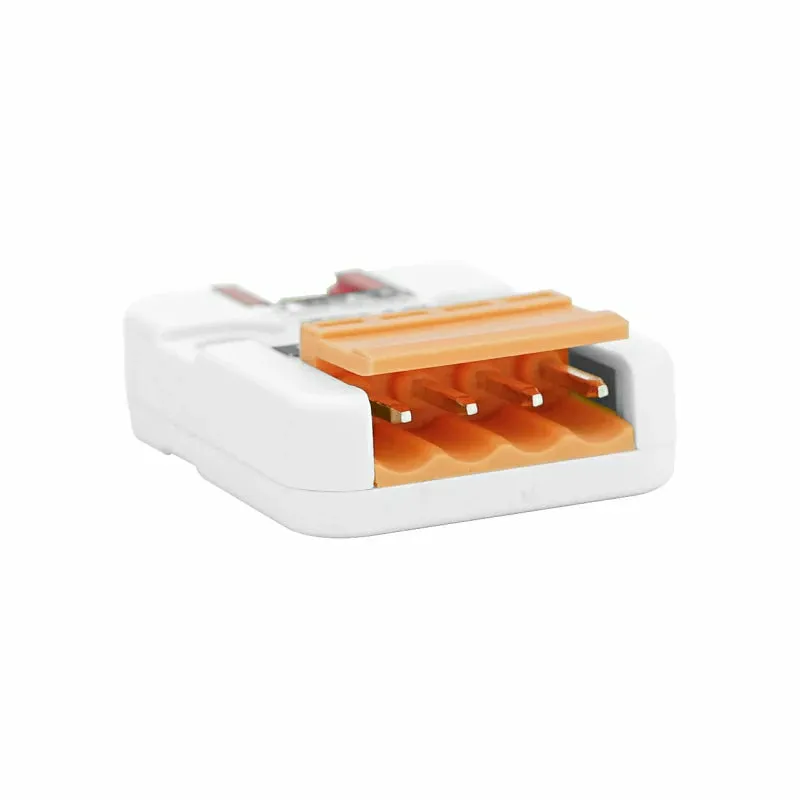

- 1x VH3.96-4P
Applications
- Microgravimeter
- Food Processing
- Logistics Transportation
- Laboratory Investigation
Specification
| Resources | Parameters |
|---|---|
| Resolution | 24Bit |
| Communication Mode | I2C（0x26） |
| Operating Temperature | 0-40°C |
| Product Size | 32*24*11.3mm |
| Package Size | 136* 92* 13.7mm |
| Product Weight | 5.2g |
| Package Weight | 12.9g |
